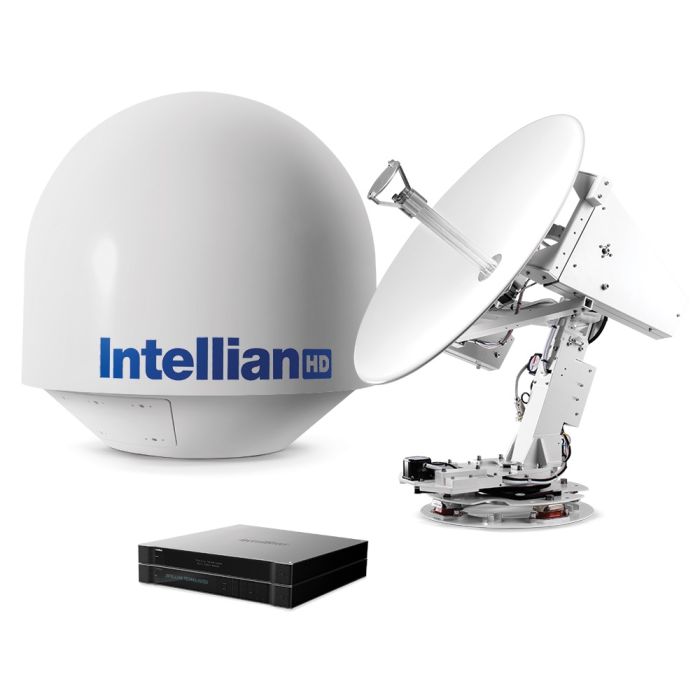

Intellian s80HD Direct TV Marine Satellite TV System (T3-87ATB)

A$34,980.11 A$26,040.75
Overview

The s80HD WorldView antenna system with its triple feed horn simultaneously receives signals from two DirecTV Ka-Band satellites and one DirecTV Ku-Band satellite. This allows viewing of all DirecTV HD channels without manually changing the satellites, for an uninterrupted viewing experience.

BRAND:
INTELLIAN
MODEL:
s80HD
PART #:
T3-87ATB
WARRANTY:
3 YEARS PARTS 2 YEAR LABOR
Stock Status:
In stock
AVAILABILITY:
USUALLY SHIPS IN 3-5 BUSINESS DAYS
Product Code:
Intellian-s80HD-System-T3-87ATB

Intellian s80HD Direct TV Marine Satellite TV System (T2-878T)
Welcome to an uninterrupted WorldView
The Intellian s80HD WorldView is the most feature-packed satellite antenna system available today. When cruising in North America this dual-band system delivers DirecTV in full HD with all the features you have at home, including DVR, up-to-date channel guide, and the ability for everyone on board to watch different channels at once. When it’s time to weigh anchor and head to another part of the world, the Ku-band WorldView Trio LNB allows the system to provide HDTV around the globe.

Intellian WorldView Trio LNB Provides Global Coverage
Gone are the days of reconfiguring complex systems, and manually changing out LNBs with each crossover into a new satellite service area. Intellian's WorldView Trio LNB technology enables reception of all Ku-Band satellites around the globe. The WorldView Trio LNB module is programmed to select each satellite automatically, allowing mariners to enjoy any satellite TV service by simply selecting the correct satellite from a drop down menu and connecting the corresponding receiver. The LNB automatically switches to the correct polarization and local frequency required by the satellite service provider.

Multi-Switch Module
The Intellian s80HD WorldView comes standard with a SWM capable Multi-Switch module to connect up to 16 DirecTV satellite receivers without additional splitters. The Multi-Switch supports both Single Wire and standard installations, reducing the need for additional hardware.

Simultaneous Reception of Ka and Ku-Band
The s80HD antenna system with its triple feed horn provides you with simultaneous reception of two DIRECTV Ka-Band satellites and one DIRECTV Ku-Band satellite located at 99°W, 101°W and 103°W. This allows viewers to watch all DIRECTV channels without manually changing the satellites, as easy as you do on shore.

Intellian WorldView™ Trio LNB
Intellian’s WorldViewTM Trio LNB technology enables reception of all Ku-Band satellites around the globe. The WorldViewTM Trio LNB can receive on all linear polarizations as well as left and right hand circular polarizations. The LNB module is programmed to select each satellite’s L.O. automatically, which allows boaters to enjoy any satellite TV services by simply selecting a target satellite and connecting a satellite receiver.

3-Axis Stabilized System
The s80HD antenna is stabilized in three axes; azimuth, elevation and cross-level, providing faster, more reliable satellite tracking. The 3-axis stabilization is especially beneficial in regions near the equator and for vessels that may find themselves out in heavy seas.

Wireless connectivity & Aptus mobile
The built in Wi-Fi ACU enables connectivity with the Aptus App that allows for simple system control and monitoring, including One -Touch Satellite library and firmware updates.

DVB-S2 Signal Identification
Intellian s80HD is fully compatible with DVB-S2 signals. It detects, identifies, and tracks satellite transmitting the DVB-S2 signal format. A capable satellite TV receiver and subscription is required.

Multi-Switch Module Included
The Intellian s80HD comes with an Intellian 19” rack mount MultiSwitch Module that allows you to seamlessly connect various types of satellite receivers. The built-in SWM capability simplifies installation by supporting single wire installation to multiple TV receivers, eliminating the need for additional hardware and cable runs.

Intellian s80HD System Diagram

More Information
PRODUCT TYPESATELLITE TV
USE TYPEMARITIME
BRANDINTELLIAN
MODELs80HD
PART #T3-87ATB
NETWORKDIRECTV
USAGE AREAREGIONAL - SEE COVERAGE MAP
ANTENNA SIZE83 cm (32.7 inch)
WEIGHT86,2 kg (190 lb)
ACCESSORY TYPEANTENNA
RECEPTION FREQUENCYKa-band : 18.3 ~ 18.8 GHz, 19.7~20.2GHz, Ku-band : 10.7 ~ 12.75 GHz
RADOME HEIGHT120.5 cm (47.5 inch)
RADOME DIAMETER113 cm (44.5 inch)
OPERATING TEMPERATURE-25°C to 55°C (-13°F to 131°F)
STORAGE TEMPERATURE-40°C to 80°C (-40°F to 176°F)
POLARIZATIONKa-band : Circular, Ku-band : Linear / Circular Switchable
AZIMUTH RANGE690°
ELEVATION RANGE-15° ~ 110°
CROSS-LEVEL RANGE±32°
MINIMUM EIRPKa-band : 44 dBW, Ku-band : 43 dBW
