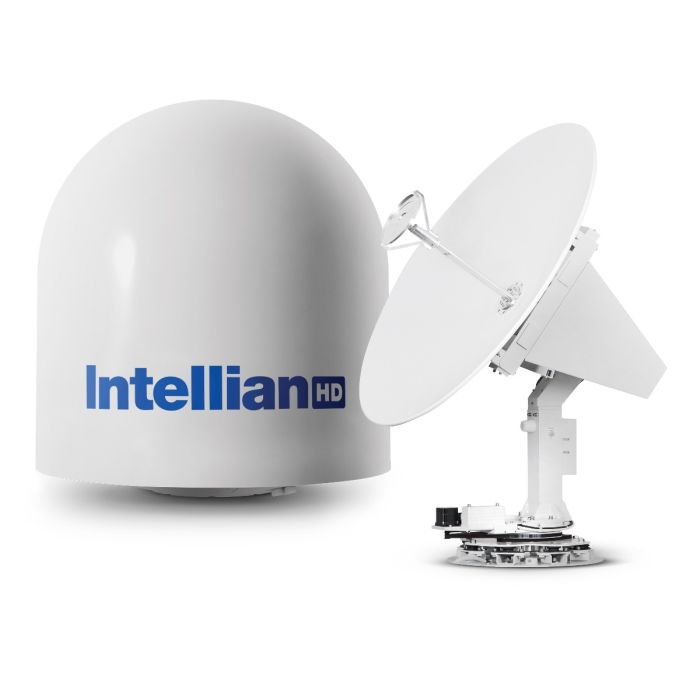

Intellian s100HD Direct TV Marine Satellite TV System (T3-107AT3)

A$43,810.84 A$34,951.09
Overview

The s100HD WorldView antenna system with its triple feed horn simultaneously receives signals from two DIRECTV Ka-Band satellites and one DIRECTV Ku-Band satellite. This allows viewing of all DIRECTV HD channels without manually changing the satellites, for an uninterrupted viewing experience.

BRAND:
INTELLIAN
MODEL:
s100HD
PART #:
T3-107AT3
WARRANTY:
3 YEARS PARTS 2 YEAR LABOR
Stock Status:
In stock
AVAILABILITY:
USUALLY SHIPS IN 3-5 BUSINESS DAYS
Product Code:
Intellian-s100HD-System-T3-107AT3

Intellian s100HD Direct TV Marine Satellite TV System (T3-107AT3)
1m Maritime Antenna for HD DIRECTV and Global TV Reception
The Intellian s100HD WorldView is the most feature-packed 1m satellite antenna system available today. When cruising in North America this dual-band system delivers DIRECTV in full HD with all the features you have at home, including DVR, up-to-date channel guide, and the ability for everyone on board to watch different channels at once. When it’s time to weigh anchor and head to another part of the world, the Ku-band WorldView Trio LNB allows the system to provide HDTV around the globe.

Intellian WorldView Trio LNB Provides Global Coverage
Gone are the days of reconfiguring complex systems, and manually changing out LNBs with each crossover into a new satellite service area. Intellian's WorldView Trio LNB technology enables reception of all Ku-Band satellites around the globe. The WorldView Trio LNB module is programmed to select each satellite automatically, allowing mariners to enjoy any satellite TV service by simply selecting the correct satellite from a drop down menu and connecting the corresponding receiver. The LNB automatically switches to the correct polarization and local frequency required by the satellite service provider.

Simultaneous Reception
The s100HD WorldView antenna system with its triple feed horn simultaneously receives signals from two DIRECTV Ka-Band satellites and one DIRECTV Ku-Band satellite. This allows viewing of all DIRECTV HD channels without manually changing the satellites, for an uninterrupted viewing experience.

Multi-Switch Module
The Intellian s100HD WorldView comes standard with a SWM capable Multi-Switch module to connect up to 16 DIRECTV satellite receivers without additional splitters. The Multi-Switch supports both Single Wire and standard installations, reducing the need for additional hardware.

Exceptional 1m Performance
The s100HD WorldViewTM 1m antenna provides exceptional coverage and performance for DIRECTV service in North America as well as service around the world making it the perfect choice for vessels traveling between the Mediterranean, US, and Caribbean.

The Ultimate in Simultaneous Reception
Intellian’s WorldView Trio LNB™ with its triple feed horn provides simultaneous reception of DIRECTV US satellites: two HD DIRECTV Ka-band (99°W/103°W) satellites and one DIRECTV Ku-band (101°W) satellite. In addition, the LNB receives Ku-band TV service around the globe providing a complete HD entertainment experience at sea, including DVR capability.

Global Satellite Library
The s100HD WorldView™ antenna system contains a built-in global satellite library that contains regional satellite data wherever you are. The library makes it simple to load your satellite providers specifications from around the globe making it easy to enjoy your favorite programming in no time.

Matching Dome Solution
The s100HD’s radome matches the styling of Intellian’s v100 and GX100 VSAT antennas, making a perfect solution for larger yachts or whenever there is an emphasis on symmetrical design. The v100 and GX100 are the most popular VSAT antennas on the market today, making them perfect match for those who also need voice, high-speed data, and fax services.

Aptus Mobile
Easily connect to the Wi-Fi enabled ACU with Aptus Mobile that enables simple system control and monitoring,, including OneTouch Satellite library and firmware updates. Aptus mobile is available From the App Store for iPhone and iPad, or Google Play for Android devices.

Multi-Switch Module Included
Intellian s100HD WorldViewTM comes with an Intellian 19” rack mount

Multi-Switch module that allows you to seamlessly connect various types of satellite receivers. The built-in SWM capability simplifies installation by supporting single wire installation to multiple TV receivers, eliminating the need for additional hardware and cable runs.

More Information
PRODUCT TYPESATELLITE TV
USE TYPEMARITIME
BRANDINTELLIAN
MODELs100HD
PART #T3-107AT3
NETWORKDIRECTV
USAGE AREAREGIONAL - SEE COVERAGE MAP
ANTENNA SIZE109 cm (42.9 inch)
WEIGHT100 kg (220 lb)
FREQUENCYKa BAND, Ku BAND
ACCESSORY TYPEANTENNA
RECEPTION FREQUENCYKa-band : 18.3 ~ 18.8 GHz, 19.7~20.2GHz, Ku-band : 10.7 ~ 12.75 GHz
RADOME HEIGHT151.0 cm (59.63 inch)
RADOME DIAMETER138 cm (54.3 inch)
OPERATING TEMPERATURE-25°C to 55°C (-13°F to 131°F)
STORAGE TEMPERATURE-40°C to 80°C (-40°F to 176°F)
CERTIFICATIONSCE COMPLIANCE, FCC
POLARIZATIONKa-band : Circular, Ku-band : Linear / Circular Switchable
AZIMUTH RANGE680º
CROSS-LEVEL RANGEUp to ±37°
