Cobham Explorer 540 BGAN M2M Terminal (403715A-00500)

A$3,700.17
Overview

The versatile and durable BGAN M2M terminal, EXPLORER 540, is the world's first Machine-to-Machine (M2M) communication terminal to operate on both Inmarsat BGAN (Broadband Global Area Network) and 2G/3G/LTE networks.

BRAND:
COBHAM
MODEL:
EXPLORER 540
PART #:
403715A-00550
WARRANTY:
12 MONTHS
Stock Status:
In stock
AVAILABILITY:
USUALLY SHIPS IN 2-3 BUSINESS DAYS
Product Code:
Cobham-Explorer-540-M2M

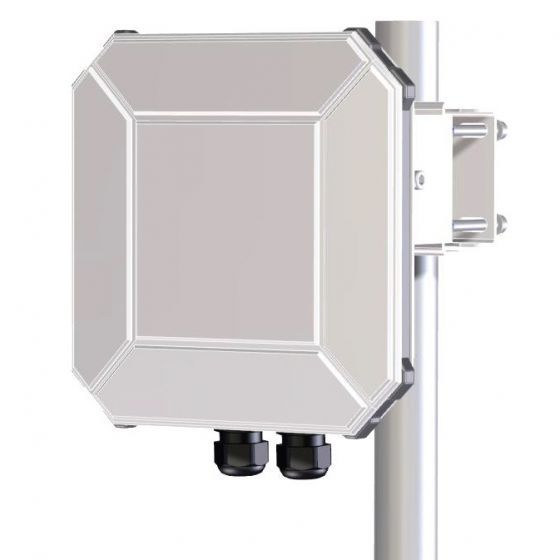

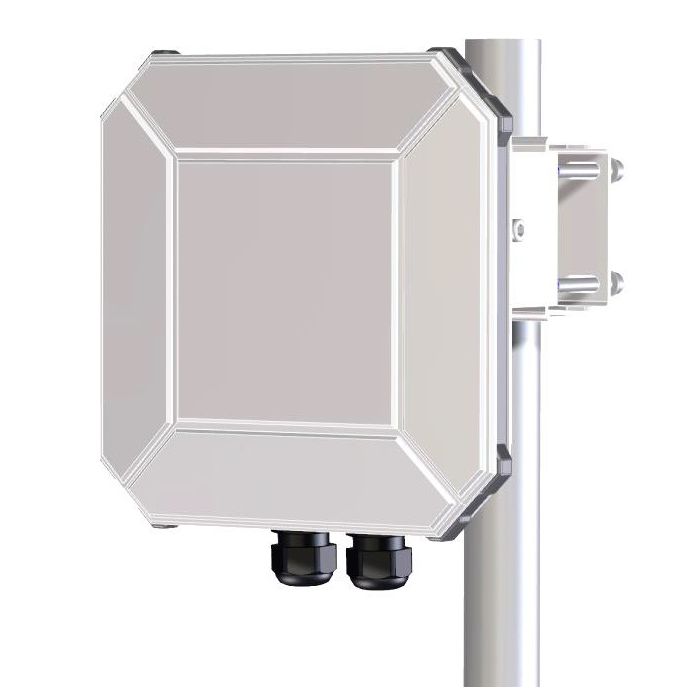

Cobham Explorer 540 BGAN M2M Terminal

Reliable and versatile
EXPLORER 540 is the world's first Machine-to-Machine (M2M) communication terminal to operate on both Inmarsat BGAN (Broadband Global Area Network) and 2G/3G/LTE networks. With resilience a key parameter within M2M networks, the primary design goal for EXPLORER 540 is to provide the most reliable, yet versatile M2M connectivity available today.

Cost-control
As the only Inmarsat BGAN M2M terminal to offer dual mode operation, EXPLORER 540 introduces unique flexibility and M2M data communication cost-control, as it ensures the most cost-effective communication service can be chosen depending on location. As the most advanced BGAN M2M terminal available, EXPLORER 540 is well suited for bespoke M2M solutions such as IP SCADA for data backhaul, asset tracking, real-time surveillance and remote telemetry.

Always available
Securing continuity of M2M IP data transfer, which often originates in hard to reach, remote locations, EXPLORER 540's dual-mode operation delivers significant failover capabilities with automatic switching between BGAN and cellular networks. For organisations transferring critical real-time data within their M2M networks, EXPLORER 540's dual mode provides unmatched service availability.

Any environment
EXPLORER 540 is a rugged M2M terminal designed to provide reliable and secure IP data in even the harshest environments. At 20 x 20 cm and just 1.6 kg, it is the smallest and lightest BGAN M2M terminal in the market today. It comes with an included pole mount and is easy to install and simple to set-up. The durable casing and a dust and water resistant IP66 design make EXPLORER 540 the perfect choice for any kind of fixed installation outside or inside.

More Information
PRODUCT TYPESATELLITE M2M
USE TYPEFIXED
BRANDCOBHAM
MODELEXPLORER 540
PART #403715A-00550
NETWORKINMARSAT
CONSTELLATION3 SATELLITES
USAGE AREAGLOBAL (EXCEPT POLAR REGIONS)
SERVICEINMARSAT BGAN M2M
LENGTH202mm (8")
WIDTH202 mm / 8"
DEPTH51.8 mm (2")
WEIGHT1.6 kg (3.5 lbs) (with cellular modem)
FREQUENCYL BAND (1-2 GHz)
INGRESS PROTECTIONIP 66
ACCESSORY TYPETERMINAL
SUPPORTED LANGUAGESENGLISH, CHINESE, FRENCH, GERMAN, JAPANESE, RUSSIAN, SPANISH

Cobham Explorer 540 Features
• EXPLORER 540 is BGAN M2M certified and BGAN Class 2 Type Approved for services such as BGAN Link
• Lightweight and rugged IP66 design ensures durability for outside mounting - no enclosure needed
• Polemount included in the package
• Simple to set up and operate
• Versatile power options with both Power over Ethernet (PoE) and 10-32VDC input
• Two cable glands for easy installation of standard power and Ethernet cables into the back housing
• Remote management of the terminal via SMS including configuration, debugging, and access to the web interface

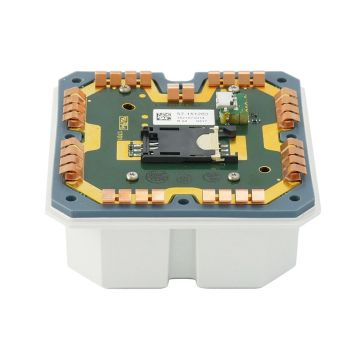

• The optional cellular 2G/3G/LTE Modem is an integrated part of the design
• Automatic failover between BGAN and the cellular network ensures continuous connectivity

• EXPLORER 540 terminal
• Polemount
• Quick Start Guide
• Multi-language webserver (ENG, FR, DE, ES, RU, JP and CN)
• 2 Cable Glands and 1 Blanking Plug
• Security torx bit for back cover
• Allen key for polemount
