Unitree Robotics R1 Edu Pro A (R1 EDU U3)

Skip to the beginning of the images gallery

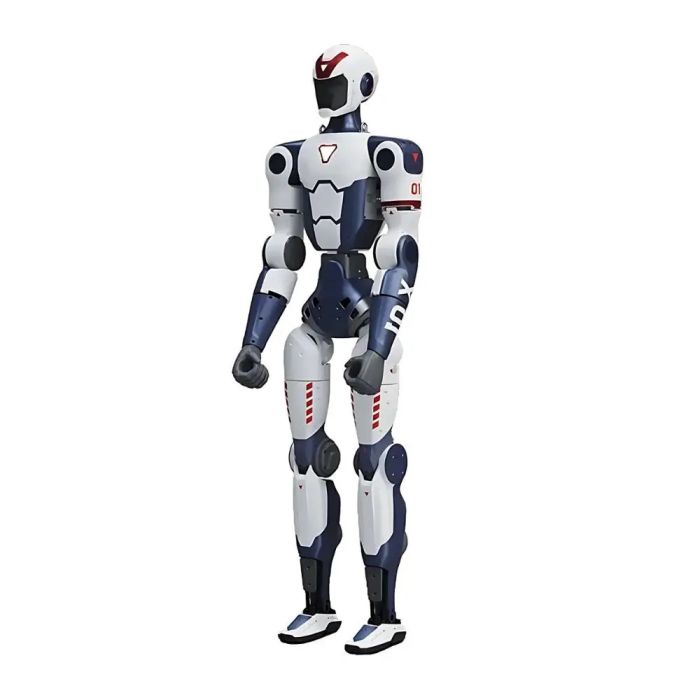

Unitree R1 Edu Pro A Humanoid Robot (R1 EDU U3)

Name: Unitree R1 Edu Pro A Humanoid Robot (R1 EDU U3)
Brand: UNITREE ROBOTICS
SKU: Unitree-Robotics-R1-EDU-U3
Price: 48212.86 AUD
Availability: InStock

A$48,212.86

BRAND:

UNITREE ROBOTICS

MODEL:

EDU PRO A

PART #:

R1 EDU U3

ORIGIN:

China

WARRANTY:

12 MONTHS

Stock Status:

In stock

AVAILABILITY:

PRE-ORDER

Product Code:

Unitree-Robotics-R1-EDU-U3

Unitree R1 Edu Pro A Humanoid Robot (R1 EDU U3)

The Unitree R1 is a next-generation humanoid robot engineered for AI-driven mobility, autonomous navigation, and real-world robotics experimentation. Designed for researchers, educators, and robotics enthusiasts, the R1 provides a versatile platform for learning, innovation, and practical robotics applications.

Equipped with state-of-the-art sensors, machine learning algorithms, and precise actuators, the Unitree R1 can traverse complex terrains, maintain balance, and perform autonomous or programmable tasks with exceptional accuracy. Its humanoid design ensures stability and agility, making it ideal for STEM education, robotics labs, research projects, and testing AI-driven locomotion algorithms.

The Unitree R1 is also designed for interactive demonstrations and experiments, providing users with the ability to program behaviors, collect real-time data, and explore advanced robotics concepts. Its robust engineering ensures reliability and durability, supporting both indoor and controlled outdoor operations.

Trusted globally by universities, research institutions, and robotics innovators, the Unitree R1 empowers users to explore AI, autonomous systems, and robotics engineering in a hands-on, practical environment. By combining cutting-edge technology with a flexible and programmable platform, the R1 represents the future of humanoid robotics.

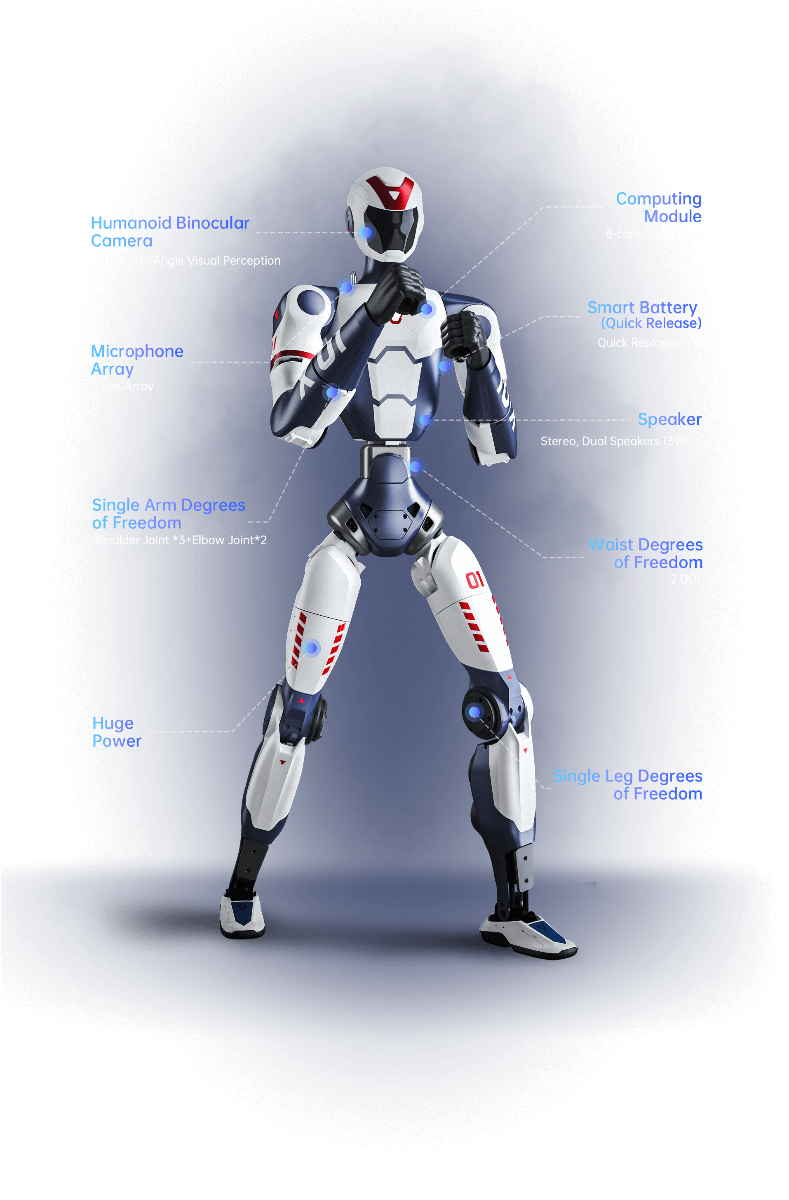

Unitree R1

Equipped with two Dex3-1 force-controlled three-finger dexterous hands (without tactile sensor).

Dexterous hands have 7 degrees of freedom per hand (thumb 3, index finger 2, middle finger 2).

Degree of Freedom(Total Joints): 40
Degrees of Freedom per leg: 6
Degrees of Freedom for waist: 2
Degrees of Freedom per arm: 5
Degrees of Freedom per Head: 2
Maximum single arm payload: 2kg
Calf + Thigh Length: 0.675m
Single arm length: approximately 0.435m
Extreme Joint Motion Range:
Waist: Y ±150°, R ±30°
Knee: -10° to +148°
Hip: Y ±157°, P -168° to +146°, R -60° to +100°
Hollow Joints with Internal Cable Routing: Yes
Joint Encoders: Dual + Single
Cooling System: Localized Air Cooling
Power Supply: Lithium Battery
Base Computing Power: 8-core High-Performance CPU
Speaker and Microphone Array Standard
Wi-Fi 6, Bluetooth 5.2: Yes
Perception Sensor: Anthropomorphic binocular camera
Charger (1), Smart Battery (Quick Release) (1)
Handheld Remote Control (1)
Battery Life: Approximately 1 hour
Smart OTA Upgrade: Supported
Secondary Development: Yes

Built-in computing power upgraded to 100 Tops expansion dock, enabling secondary development and including AI algorithm support.

Supports high- and low-level secondary development, provides robot models and simulation interfaces, and supports simulation environments such as Isaac SIM.

Provides excellent technical support, comprehensive development manuals, and ecosystem support

Included Accessories:
1. Remote Control
2. Battery Charger
3. Robot Transport Case
Protective bracket not included by default

More Information
BRAND	UNITREE ROBOTICS
MODEL	EDU PRO A
PART #	R1 EDU U3
HEIGHT	1210 mm
WIDTH	357 mm
DEPTH	190 mm
WEIGHT	Approx. 25 kg
TOTAL DEGREES OF FREEDOM (DOF)	40

Unitree Robotics R1 Edu Pro A (R1 EDU U3)

Unitree R1 Edu Pro A Humanoid Robot (R1 EDU U3)
