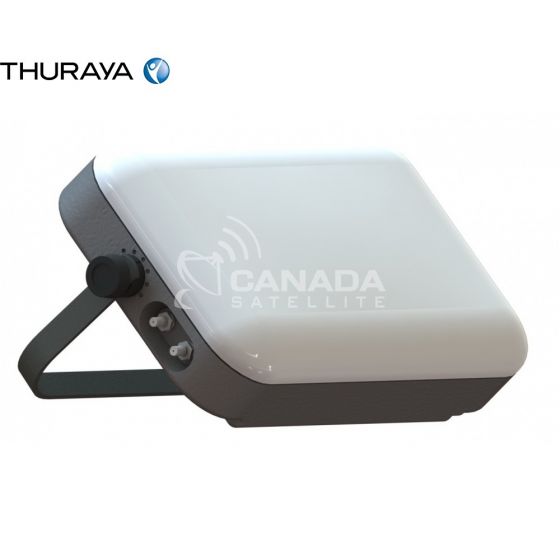

SCAN Active Portable Antenna for Thuraya IP (62 100)

A$3,928.28
BRAND:
SCAN ANTENNA
PART #:
62 100
WARRANTY:
12 MONTHS
Stock Status:
In stock
AVAILABILITY:
USUALLY SHIPS IN 3-5 BUSINESS DAYS
Product Code:
Scan-Active-Portable-ThurayaIP

SCAN Active Portable Antenna for Thuraya IP (62 100)
Scan Active Antenna is designed to provide reliable connectivity through your Thuraya IP, thus enhancing the performance of Standard IP and Streaming IP.

The antenna is best suited for customers in the media industry who require a compact, reliable and easy to carry/setup solution for streaming videos while on the field. Scan Active Antenna connects quickly and conveniently as if you were back in the news room.

ELECTRICAL SPECIFICATIONS:
FREQUENCY 1525 - 1559 MHz, 1626.5 - 1660.5 MHz, 1575.42 MHz (L-band)
SATELLITE SYSTEM ThurayaIP
POLARISATION LCHP (SAT)
AXIAL RATIO < 2 dB
SUPPLY VOLTAGE 12V - 24V DC via coax, 19V DC for charging
POWER CONSUMPTION, AVERAGE 18W
POWER CONSUMPTION, PEAK 24W
G/T, TYP. -16 dB/K
G/T, MIN. -18 dB/K
EIRP, TYP. 16 dBW
EIRP, MIN. 15 dBW
MECHANICAL SPECIFICATIONS:
COLOR Light Grey / Dark Grey
LENGTH 155 mm
HEIGHT 60 mm
WIDTH 270 mm
WEIGHT 1.55 kg without battery, 1.80 kg with battery
OPERATING TEMPERATURE 0C to 55C (when DC powered), 0C to 50C (using battery), 0C to 40C (charging)
SURVIVAL TEMPERATURE -20C to +60C (with battery), -40C to +85C (without battery)
CONNECTOR 1 QMA(f) (SAT)
CONNECTOR 2 QMA(f) (GPS)
CABLE 6m set included, other lengths optional
MOUNTING PLACE Directly on ground or flat surface or pole mount
INGRESS PROTECTION IP55
ORDERING INFORMATION:
PART NO. 62100
PART NO. C15010 (10m Cable-kit)
PART NO. C15015 (15m Cable-kit)
PART NO. C15030 (30m Cable-kit)
More Information
BRANDSCAN ANTENNA
PART #62 100
NETWORKTHURAYA
USAGE AREAREGIONAL - SEE COVERAGE MAP
LENGTH155 mm
WIDTH270 mm
DEPTH60 mm
WEIGHT1.8 kg
ACCESSORY TYPEANTENNA

Thuraya Coverage Map


Thuraya Coverage Map

Thuraya's robust satellite network provides coverage in the most remote locations, ensuring congestion-free satellite communications to keep you connected at all times. From innovative satellite design to the reliability of each Thuraya device and accessory, we provide a truly superior satellite communication solution beyond the boundaries of terrestrial systems and cellular networks.

The Thuraya network does not cover north or south America.
