MCD-4800 "The Football" Global WiFi Hotspot - Gen. II

A$20,086.90
Overview

No pointing and no setup - simply turn it on - The MCD-4800 is WiFi access point that works almost everywhere on the globe.

MODEL:
FOOTBALL II
PART #:
MCD-4800
WARRANTY:
12 MONTHS
Stock Status:
In stock
AVAILABILITY:
USUALLY SHIPS IN 3-5 BUSINESS DAYS
Product Code:
MCD-4800-The-Football

MCD-4800 "The Football" Global WiFi Hotspot

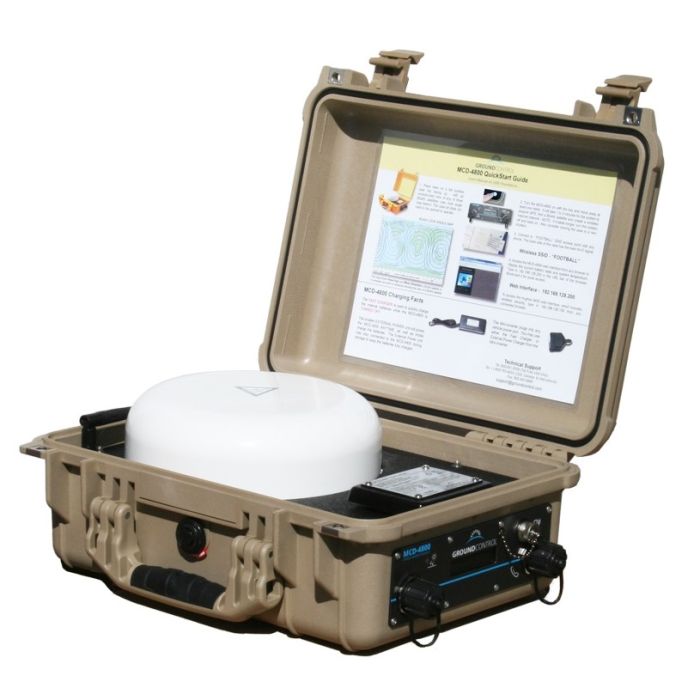

The MCD-4800 "Mobile Communications Device", also known as "The Football", is an auto-pointing BGAN satellite terminal that requires no user training to operate. Simply place the weatherproof case on the ground, or on a boat deck, or on any surface with a clear view of the sky, rain or shine, anywhere in the world and turn it on - no pointing necessary. Within a minute the MCD-4800 becomes a powerful WiFi hotspot accessible by any wireless device within a 100 meter range for up to 5 hours on internal battery power. This auto-pointing solution uses the high performance Hughes 9450 in-motion BGAN terminal integrated with our proprietary mobile electronics for a ruggedized self-contained, in-field or on sea, user-friendly global communications link.

More Information
PRODUCT TYPESATELLITE INTERNET
USE TYPEMARITIME, PORTABLE
MODELFOOTBALL II
PART #MCD-4800
NETWORKINMARSAT
USAGE AREAGLOBAL (EXCEPT POLAR REGIONS)
SERVICEINMARSAT BGAN
DATA SPEEDUP TO 448 / 464 kbps (SEND / RECEIVE)
LENGTH432 mm
WIDTH349 mm
DEPTH171 mm
WEIGHT10.9 kg (25 pounds)
FREQUENCYL BAND (1-2 GHz)
INGRESS PROTECTIONIP 67

MCD-4800 FEATURES
- No pointing or aiming ...simply turn it on under an open sky on land or at sea.
- Connects automatically with any BGAN satellites for near 100% global service.
- High speeds rated at up to 464 Kbps down by 448 Kbps up (standard class 2 BGAN)
- Does not require user interaction. No software to run. Establishes AP "Hotspot" automatically.
- Ruggedized. Operates in extreme conditions. Case does not need to be opened for operation.
- WaterProof - Rated at IP67 (May be immersed in water up to 1 meter).
- Operates stationary or in-motion such as on top of a vehicle, or a vessel on the ocean.
- WiFi Range up to 100 meters (328 feet) for laptops, smartphones...any wireless capable device.
- Ethernet RJ-45 port on the front panel is also PoE (Power over Ethernet) capable.
- Compact size 17" x 13.75" x 6.75" (432 x 349 x 171 mm) and weighs 25 lbs (10.9 kg).
- Up to 5 hour battery life (rechargeable) for normal use.
- May be plugged into a vehicle 12V power port for continuous operation or charging.
- Internet service can be usage based, or pre-paid using standard BGAN Service Plans.
- Includes standard analog phone. The RJ-11 jack is assigned an international phone number.
- Calls are US$0.99 cents per minute to any standard phone worldwide. Free incoming calls.
- SMS messages are US$0.50 cents w/free incoming messages. iPhone texting capable.
- No rain fade - Operates in heavy rain and will function with up to 20mm of ice buildup.
- Internal temperature control fan - cools internal electronics during high temperatures.
- Housed in a waterproof, crushproof, dust proof reinforced plastic Pelican case.
- Shippable - Ships UPS, FedEx, flight carry-on luggage anywhere (no special battery regulations).
- Full IP compatibility - Internet, SMTP email, file transfer (FTP, and VPN) standard TCP-IP.
- Global public / static IP addresses are available.
- Powerful firewall rules available at no additional cost.
- VPN (IPSec) or private networking available (MPLS, Leased). BGAN security options
- Optional 80 watt foldable solar panel available, increases runtime, or recharge.
- Custom engineering available... such as adding special equipment inside a larger case.
- 1 year standard warranty. 3 year and 5 year warranties available.

MCD-4800 Complete Package Contents
- MCD-4800 BGAN terminal flyaway case
- AC/DC power supply charger
- A standard corded analog phone
- Mini-inverter for running off a vehicle power port
- Laminated Quickstart guide
- International plugs U.S., U.K., European, Australian, China, N. Europe
- Miniature compass, to help in finding obstacle to the BGAN satellite
- USB flash drive with user manuals, mobile status gadget, software
- Carry bag to hold contents of system components
