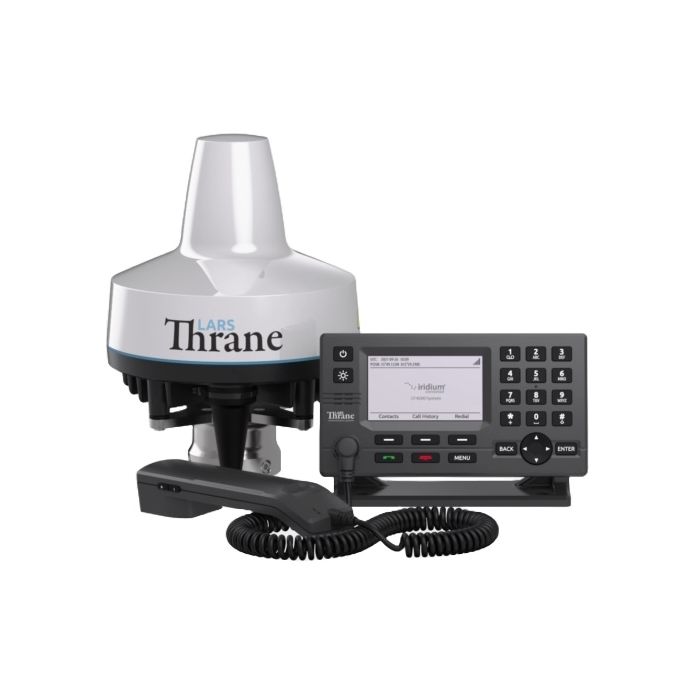

Lars Thrane LT-4200 Iridium Certus 200 Maritime Internet Terminal (90-102656)

A$9,463.61 A$7,858.24
BRAND:
LARS THRANE
MODEL:
LT-4200
PART #:
90-102656
Stock Status:
In stock
AVAILABILITY:
USUALLY SHIPS IN 3-5 BUSINESS DAYS
Product Code:
Lars-Thrane-LT-4200

Lars Thrane LT-4200 for Iridium Certus 200 (LT-4200)
The LT-4200 Satellite Communications System (Iridium Certus® 200) is a maritime satellite communication product from Lars Thrane A/S. The LT-4200 system is designed for the professional market (deep sea, fishing, and workboats), but can be used for the leisure market as well. The LT-4200 system meets all standards and certification requirements needed for worldwide maritime satellite communication equipment.

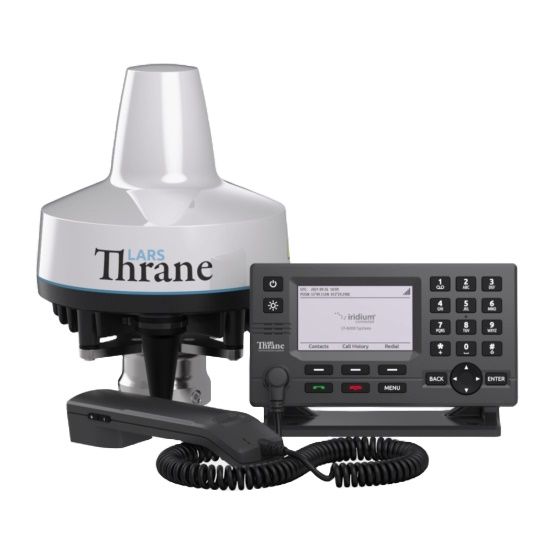

The LT-4200 system has voice and data capabilities with 100% global coverage provided by the Iridium® Certus network. The LT-4200 system consists of a control unit, antenna unit, handset, and cradle. A single coaxial cable connects the control unit with the antenna unit. Using a standard coaxial cable, up to 150 meters of separation between the units can be obtained, giving freedom to mount the antenna unit in the best possible location, with free line of sight to the satellites.

"The Iridium Certus 200 service class addresses a very specific market niche in the maritime industry, but that niche includes a large number of vessels such as commercial fishing boats, workboats, coastal shipping and leisure craft," said Wouter Deknopper, vice president & general manager, maritime line of business at Iridium. "The new LT-4200 from Lars Thrane is a smaller, lighter, faster and cost-competitive option when compared to the closest alternative in the market. As a result, Iridium and our partners are once again bringing a new and superior option to the maritime industry."

"The LT-4200 maritime satcom product is an important product for Lars Thrane, which allows us to offer our customers a compact and competitive L-band product with faster bandwidth and maritime performance specifications, which will satisfy most requirements for a maritime product in this class," said Peter Thrane, CEO of Lars Thrane. "We look forward sharing more details about this product in the near future."

Made possible by the recently upgraded Iridium® satellite constellation, the Iridium Certus service goes beyond serving solely as a connectivity solution. It provides a platform for the company's partners to develop specialized broadband, midband and narrowband applications only possible through Iridium's crosslinked L-band network. The service offers the flexibility to scale device speeds, sizes and power requirements both up and down based on the needs of the end-user.

More Information
PRODUCT TYPESATELLITE PHONE, SATELLITE INTERNET
USE TYPEMARITIME, VEHICULAR
BRANDLARS THRANE
MODELLT-4200
PART #90-102656
NETWORKIRIDIUM
USAGE AREA100% GLOBAL
SERVICEIRIDIUM CERTUS LAND, IRIDIUM CERTUS MARITIME
DATA SPEEDUP TO 176 kbps (SEND / RECEIVE)
FREQUENCYL BAND (1-2 GHz)

Key Features:

  • LT-4200 Certus® 200 Maritime
  • LT-4200L Certus® 200 LandMobile
  • 3 x high quality voice channels
  • Background IP: up to 176 kbps (up/down)
  • Single antenna cable solution (up to 150 m)
  • Support for external SIP PABX and SIP handsets (up to 8)
  • POTS through Analogue Telephone Adaptors (ATA)
  • High-performance GNSS/GPS receiver
  • Ethernet LAN interface on control unit
  • Large 4.3” TFT display supporting day and night modes
  • Firewall and user authentication for high level of security
  • Configuration of firewall, port forwarding, and remote access
  • PPPoE/JSON protocol for external IP-data management
  • Web server for configuration and maintenance

In The Box:

  • LT-4210 Control Unit
  • LT-3120 Handset
  • LT-3121 Cradle
  • LT-4230/-L Antenna Unit
  • Bracket Mount, Control Unit
  • Power Cable, 3m
  • Stainless steel A4 screws for mounting
  • User & Installation Manual
  • Unit Test Sheets

Iridium Global Coverage Map


Iridium Coverage Map

Iridium delivers essential communications services to and from remote areas where no other form of communication is available.  Powered by a uniquely sophisticated global constellation of 66 cross-linked Low-Earth Orbit (LEO) satellites, the Iridium® network provides high-quality voice and data connections over the planet’s entire surface, including across airways, oceans, and polar regions. Together with its ecosystem of partner companies, Iridium delivers an innovative and rich portfolio of reliable solutions for markets that require truly global communications.

At only 780 kilometers from the Earth, the proximity of Iridium’s LEO network means pole-to-pole coverage, a shorter transmission path, stronger signals, lower latency, and shorter registration time than with GEO satellites. In space, each Iridium satellite is linked to up to four others creating a dynamic network that routes traffic among satellites to ensure global coverage, even where traditional local systems are unavailable.
