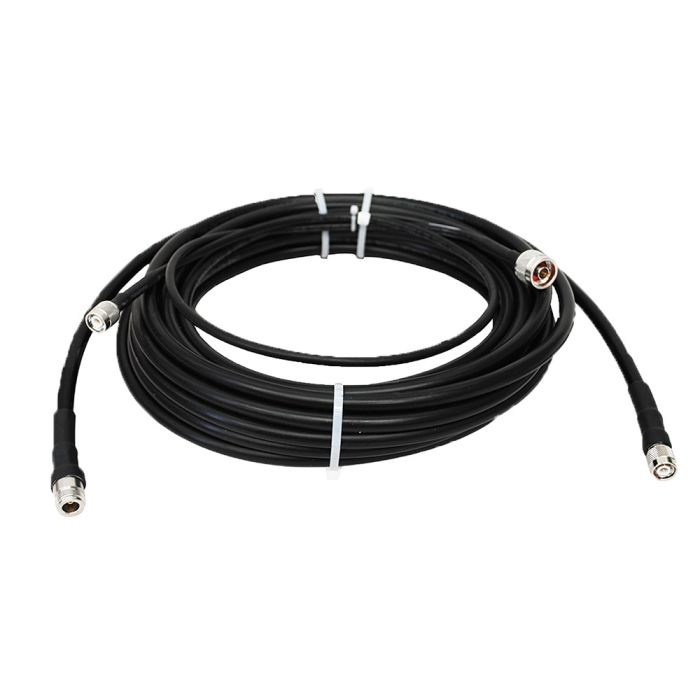

Iridium Beam Passive Antenna Cable Kit - 12m / 39.4ft (RST933)

A$567.85
Overview

Beam RST933 Iridium 12 metre (39.4 feet) antenna cable provides a flexible installation option for most marine or fixed site installations and is pre-terminated with TNC male connectors.

BRAND:
BEAM
PART #:
RST933
ORIGIN:
Australia
WARRANTY:
12 MONTHS
Stock Status:
In stock
AVAILABILITY:
USUALLY SHIPS IN 3-5 BUSINESS DAYS
Product Code:
Beam-Passive-Cable-RST933

Iridium Beam Passive Antenna Cable Kit - 12m / 39.4ft (RST933)
Beam RST933 Iridium 12 metre (36 feet) antenna cable provides a flexible installation option for most marine or fixed site installations and is pre-terminated with TNC male connectors.

• Within Iridium's 3dB Loss Specification
• Times Microwave Cable
• TNC Terminated to Connect to Terminal & Antenna
• Fully Tested

Main Cable (Passive)

Length m ft
Main Cable 11 36.09
Dimensions mm inches
External Diameter 10.29 0.41
Bend Radius 25.4 1
Bend Radius - repeated 101.6 4
Temperature Degrees °C Degrees °F
Operating -40°C to +85°C -40°F to +185°F


Fly-Lead (Passive)

Length m ft
Fly-Lead 1 3.28
Dimensions mm inches
External Diameter 6.1 0.24
Bend Radius 19.1 0.75
Bend Radius - repeated 63.5 2.5
Temperature Degrees °C Degrees °F
Operating -40°C to +85°C -40°F to +185°F



Connectors

Main Cable TNC-Male to N-Male
Fly-Lead TNC-Male to N-Female
More Information
PRODUCT TYPESATELLITE PHONE
BRANDBEAM
PART #RST933
NETWORKIRIDIUM
FEATURESPASSIVE
FREQUENCYL BAND (1-2 GHz)
ACCESSORY TYPECABLE
OPERATING TEMPERATURE-40ºC to 85ºC (-40ºF to 185ºF)
