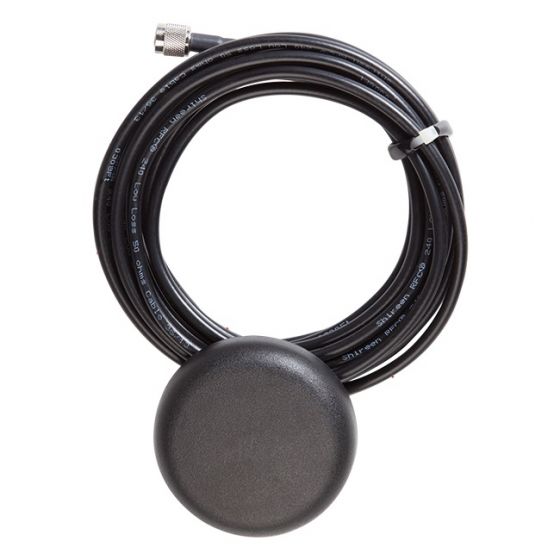

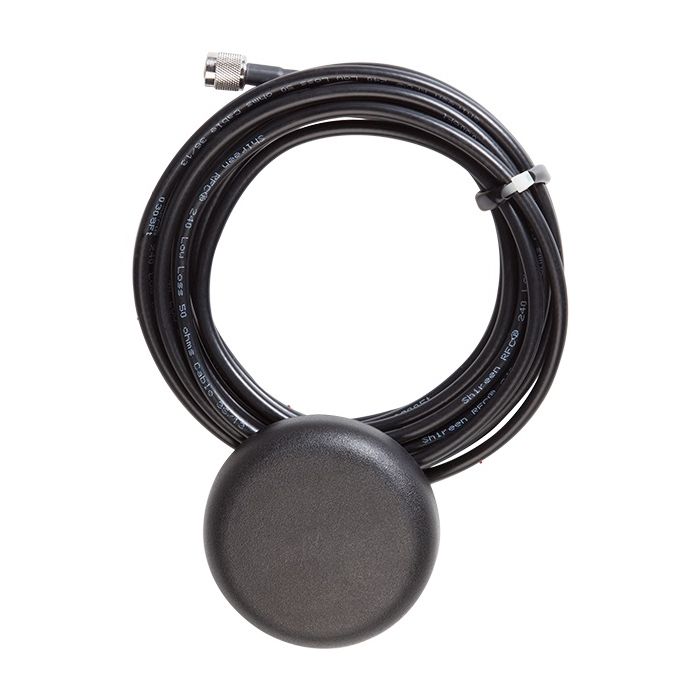

This Iridium-frequency antenna (AT1621-5) is designed for land/mobile applications and will work with both voice and data communications systems. 197 inches of antenna cable is included and attached to the antenna. The antenna includes a bulkhead connector to allow it to be installed on the roof of a vehicle with only one hole.
Specifications
Diameter: 8.966 cm (3.53 in.)
Height: 2.108 cm (.83 in.)
Weight: 283.49 grams (10.0 oz)
(This product is also marketed as the Beam RST720)
| HARMONIZED TARIFF NUMBER | 85177900 |
|---|---|
| PRODUCT TYPE | SATELLITE PHONE |
| USE TYPE | VEHICULAR |
| BRAND | AEROANTENNA |
| PART # | AT1621-5 |
| NETWORK | IRIDIUM |
| USAGE AREA | 100% GLOBAL |
| SERVICE | IRIDIUM VOICE |
| FEATURES | PASSIVE |
| WIDTH | 8.966 cm (3.53 in.) |
| DEPTH | 2,108 cm (0,83 po) |
| WEIGHT | 283,49 grammes (10,0 onces) |
| FREQUENCY | L BAND (1-2 GHz) |
| ACCESSORY TYPE | ANTENNA |
| COMPATIBLE WITH | IRIDIUM 9575 EXTREME, IRIDIUM PTT, IRIDIUM 9555, IRIDIUM 9505A, IRIDIUM 9505, IRIDIUM 9500, IRIDIUM GO! |
| OPERATING TEMPERATURE | -40°C to 70°C |
