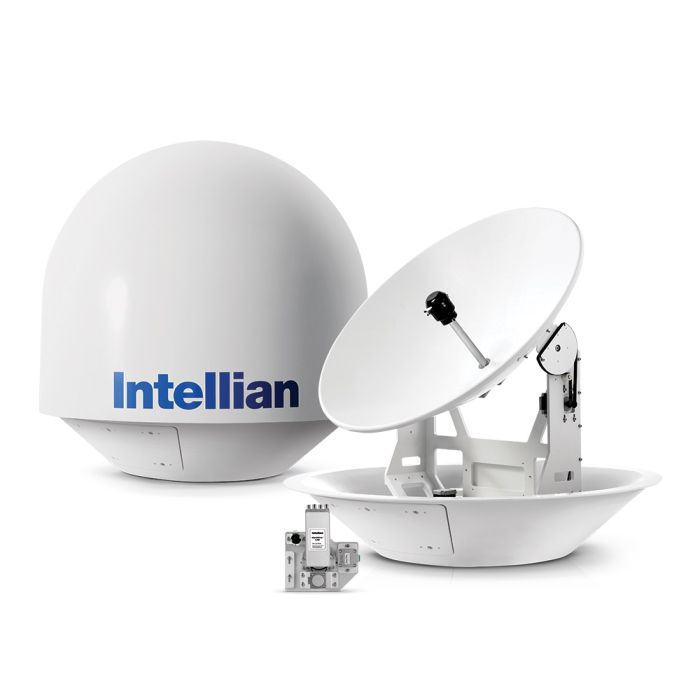

Intellian i9W 2-axis Global Marine Satellite TV System w/ 85cm (33.5") Dish & WorldView LNB (B4-919W2)

A$18,924.77
Overview

Intellian’s i9 offers extended coverage satellite TV reception, perfect for larger recreational or commercial vessels. With integrated GPS and Auto Skew Control, the Intellian i9P allows for fastest and reliable satellite tracking in the roughest sea conditions.

BRAND:
INTELLIAN
MODEL:
i9W
PART #:
B4-919W2
WARRANTY:
3 YEARS PARTS 1 YEAR LABOR
Stock Status:
In stock
AVAILABILITY:
USUALLY SHIPS IN 3-5 BUSINESS DAYS
Product Code:
Intellian-i9W-System-B4-911W2
Intellian i9W 2-axis Global Marine Satellite TV System w/ 85cm (33.5") Dish & WorldView LNB (B3-911W2)

Global satellite services compatibility
Intellian i9W provides the ultimate convenience to connect you up to thousands of Free TV, Pay TV, Standard Definition, and High Definition programming all over the world with one LNB module which incorporates multi (8) LO frequencies.

Hands-free WorldView™ LNB module
The 2nd generation, patent-pending WorldView LNB module is the latest innovation from Intellian. Unlike other TVRO system LNB’s with ±1,000 kHz stability, the Intellian WorldView LNB module is built on the highest stability of ±10 kHz which has 100 times more accuracy and greater signal sensitivity.

In addition, this LNB module receives multi-band and multi-polarization satellite TV services around the globe. Therefore, boaters don’t need to manually change the LNB inside the antenna dome each time the vessel crosses into a different satellite service region.

DVB-S2 digital TV reception
Some of the HD TV services have moved onto DVB-S2 and will be more in the future. Thanks to Intellian’s groundbreaking DVB-S2 digital TV technology, now boaters are able to enjoy their favorite DTH (Direct To Home) entertainment at sea, just like home.

Global satellite library
The i9W includes the pre-programmed global satellite library which allows boaters to select the desired satellite while travelling from region to region. Once the satellite is selected the WorldView LNB module will automatically switch to the corresponding local frequency to receive the signal.

Wireless connectivity & Aptus mobile
The built-in Wi-Fi enables the ACU to be wirelessly connected. PCs, laptops and smartphones can be used to connect to the ACU and monitor, control and change the settings of the system wirelessly. Intellian Aptus mobile is available for download to access to the ACU via Wi-Fi and operate the antenna from their iPhone, iPad or other network devices. iPhone and iPad are registered trademarks of Apple Inc.

Intellian i9 System Diagram

More Information
PRODUCT TYPESATELLITE TV
USE TYPEMARITIME
BRANDINTELLIAN
MODELi9W
PART #B4-919W2
USAGE AREAREGIONAL - SEE COVERAGE MAP
ANTENNA SIZE85 cm (33.5 inch)
WEIGHT56,2 kg (124 lb)
FREQUENCYKu BAND
ACCESSORY TYPEANTENNA
RECEPTION FREQUENCYKu-band: 10.7 ~ 12.75 GHz
RADOME HEIGHT121.0 cm (47.5 inch)
RADOME DIAMETER113 cm (44.5 inch)
OPERATING TEMPERATURE-25°C to 55°C (-13°F to 131°F)
STORAGE TEMPERATURE-40°C to 80°C (-40°F to 176°F)
VESSEL SIZEOVER 80 FEET
CERTIFICATIONSCE COMPLIANCE, FCC
POLARIZATIONCIRCULAR AND LINEAR
AZIMUTH RANGE680º
ELEVATION RANGE-15º to 90º
SHIP'S MOTIONRoll ±25º, Pitch ±15º
ROLL & PITCH RESPONSE RATE30º / sec
MINIMUM EIRP44dBW
TURNING RATE30º / sec
RF OUTPUTDUAL / QUAD OUTPUT

Intellian i9W Coverage Maps


Intellian Bell TV Coverage Map

Intellian Dish Network Coverage Map

Intellian DirecTV North America Coverage Map

Intellian DirecTV Latin America Coverage Map

Intellian Brazil Claro Coverage Map

Intellian Sky Brazil Coverage Map
