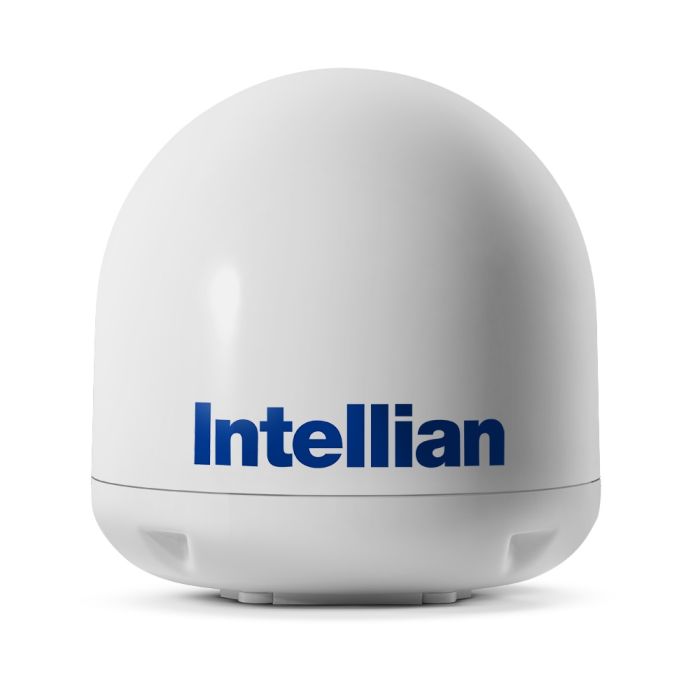

Intellian i3 Empty Dome & Baseplate Assembly (S2-3108)

A$950.37
BRAND:
INTELLIAN
PART #:
S2-3108
WARRANTY:
3 YEARS PARTS 2 YEAR LABOR
Stock Status:
In stock
AVAILABILITY:
USUALLY SHIPS IN 3-5 BUSINESS DAYS
Product Code:
Intellian-i3-Empty-Dome

Intellian i3 Empty Dome & Baseplate Assembly (S2-3108)

Intellian i3 System Diagram
More Information
PRODUCT TYPESATELLITE TV
USE TYPEMARITIME
BRANDINTELLIAN
PART #S2-3108
NETWORKBELL TV, BRAZIL CLARO, DIRECTV, DIRECTV LATIN AMERICA, DISH NETWORK, SKY BRAZIL, TELUS SATELLITE TV
USAGE AREAREGIONAL - SEE COVERAGE MAP
ANTENNA SIZE37 cm (14.6 inch)
WEIGHT9,0 kg (19,8 livres)
ACCESSORY TYPEDOME
RADOME HEIGHT44 cm (17.3 inch)
RADOME DIAMETER43 cm (16.9 inch)
OPERATING TEMPERATURE-25°C to 55°C (-13°F to 131°F)
STORAGE TEMPERATURE-40°C to 80°C (-40°F to 176°F)

Intellian i3 System Features


Fully Automated System
  • Automatic Satellite Search and Identification Function
  • 2-axis Stabilization provides high speed tracking

High Performance Antenna

  • 37 cm (15in) diameter parabolic antenna for receiving the Ku-band satellite signals
  • Circular or linear polarization depending on region and LNB selected
  • Built-in HD module for Ku-band HD TV reception

Intellian’s Patented Quick&Quiet℠ Technology (iQ²)

  • iQ² Technology allows you to tune in quickly, maintain a solid signal lock, and enjoy your favorite TV programming in quiet comfort
  • The Wide Range Search (WRS) Algorithm delivers the fastest signal acquisition available anywhere
  • Dynamic Beam Tilting (DBT) technology uses intelligent, real-time beam analysis to ensure superior signal quality while eliminating intrusive background noise experienced with conventional antennas

Antenna Control Unit

  • Intuitive controls with a digital information display on the ACU
  • Wireless automated updates and diagnostics via Aptus PC and Aptus Mobile
  • DC Out Port for easy power supply to the Intellian MIM or the Shaw Decoder Module

Multiple Receiver Capability

  • Multiple receivers and TVs can be connected using a Multi-Switch or the Intellian MIM (Multi-Satellite Interface Module)
  • Using the MIM a master receiver can be selected to control the target satellite
  • In North America, when using Dish or Bell TV, a MIM is required, enabling automatic satellite switching from your remote control just like you do at home

Built-in GPS and NMEA 0183 Interface

  • The i3 includes a built-in GPS inside the Antenna Unit for faster signal acquisition
  • The ship's GPS can also be connected through the NMEA 0183 port on the rear panel of the ACU

Compact Size

  • 43cm (16.9 inch) antenna radome diameter
  • Antenna weighs less than 9 kg (19.8 pounds)

Three Year Global Warranty

  • Industry leading 3-year parts and workmanship guarantee with a 2-year labor warranty for all antenna systems, ensuring peace of mind with your hardware investment
  • The new warranty policy(3 year parts and 2 year labor) is only valid for products purchased after 1st, January 2017

Whats Included


All Satellite Systems include the following parts as standard
- Antenna & Radome 37 cm (14.6 inch) Reflector & LNB
- ACU (Antenna Control Unit)
- PC Controller Program (Software CD included)
- Installation & Operation Manual
- Installation Template
- Quick Installation Guide

Installation Kit
- ACU Table Mounting Bracket × 2EA
- 15 m (49) ft × 1EA Antenna-ACU RG6 Coaxial Cable
- 3 m (10 ft) × 1EA ACU-IRD RG6 Coaxial Cable
- 10 m (33 ft) × 1EA DC Power Cable
- 1.8 m (6 ft) × 1EA PC Serial Cable
- Connectors & Screws

Intellian i2 Coverage Maps


Intellian Bell TV Coverage Map

Intellian Dish Network Coverage Map

Intellian DirecTV North America Coverage Map

Intellian DirecTV Latin America Coverage Map

Intellian Brazil Claro Coverage Map

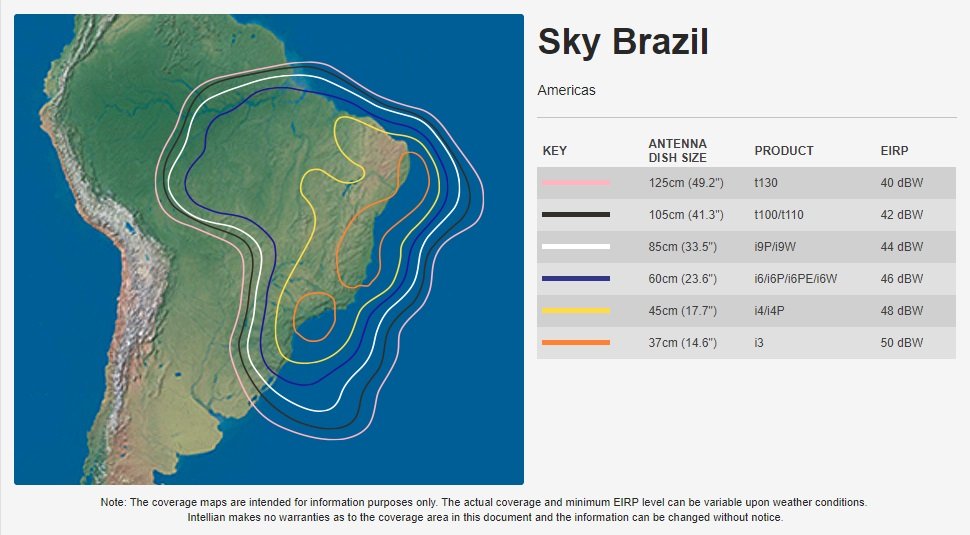

Intellian Sky Brazil Coverage Map
