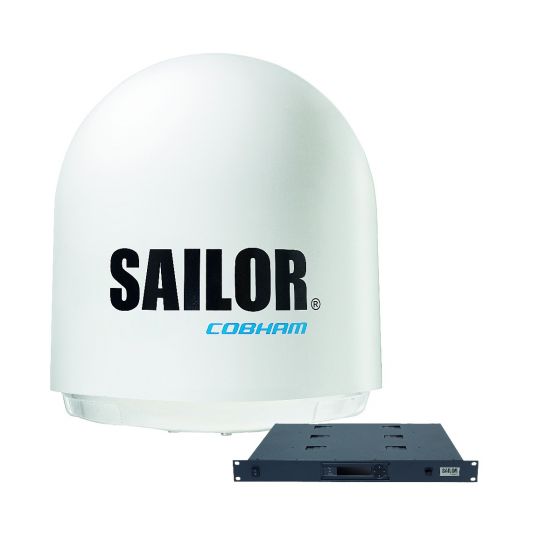

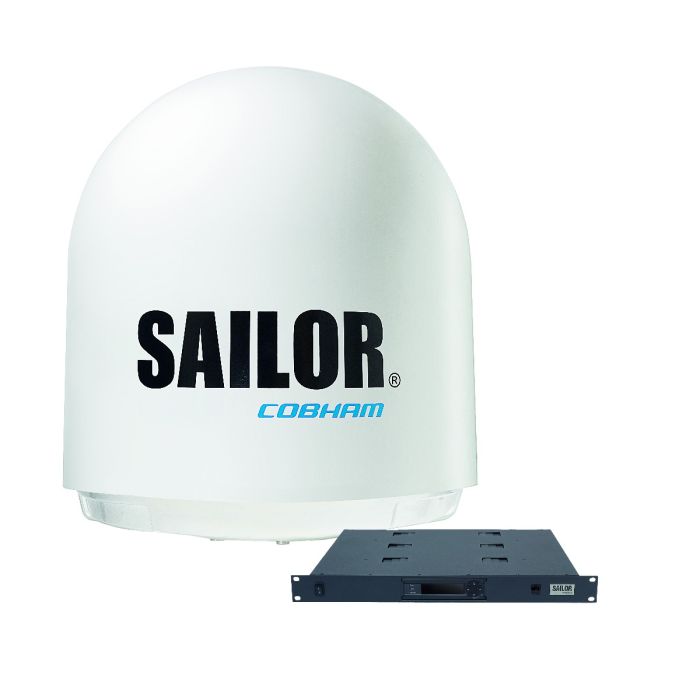

Cobham SAILOR 900 VSAT Ka Maritime Satellite Internet System (407090D-00501)

A$55,139.57
Overview

The new SAILOR 900 VSAT is a powerful, quick-to-deploy, stabilized VSAT antenna system with integrated GPS, advanced Ku-band satcom technology and the highest RF performance in the 1m antenna class. Pre-configured, always perfectly balanced, factory tested and backed by our class-leading service and support, the SAILOR 900 VSAT brings reliability and simplicity to maritime professionals, worldwide.

BRAND:
COBHAM
MODEL:
SAILOR 900
PART #:
407090D-00501
Stock Status:
In stock
AVAILABILITY:
USUALLY SHIPS IN 7-14 BUSINESS DAYS
Product Code:
Cobham-SAILOR-900-Ka-VSAT-System

Cobham SAILOR 900 VSAT Ku System (407090B-00501)
The SAILOR 900 VSAT Ka is the world’s most advanced and reliable 3-axis stabilized Ka-band antenna system for the Telenor THOR 7 satellite network. It’s unique design and technology streamlines the deployment process, introducing significant installation benefits. While in operation, SAILOR 900 VSAT Ka enables service providers to deliver unmatched reliability and link uptime.

The game-changing operational and installation attributes of the SAILOR 900 VSAT Ka are made possible through the power of the proven SAILOR VSAT technology platform. Highly regarded by satcom service providers worldwide, the ease-of-use, quick deployment and reliable operation enabled by SAILOR VSAT technology has created a new industry standard.

The benchmark for Ka performance
SAILOR 900 VSAT Ka is built to withstand the toughest sea conditions and still deliver high bandwidth connectivity. It is the fastest tracking antenna available, with superior dynamic performance in all axes; roll, pitch and yaw. This high performance means that even smaller vessels more affected by rough seas can make the most of THOR 7 services.

A simple revolution in VSAT deployment
Advanced SAILOR VSAT technology antenna systems like SAILOR 900 VSAT Ka completely simplify the once complex process of VSAT antenna procurement and installation. This saves time and money. Cobham SATCOM has achieved this revolution not through a single design breakthrough, but with a wealth of features and details unique to the SAILOR VSAT technology platform. For instance, a single cable between antenna and below deck equipment for RF, power and data combined with Automatic Azimuth Calibration and Automatic Cable Calibration enable unique ‘One touch commissioning’. Dynamic Motor Brakes inside the antenna remove the requirement for mechanical brake straps, ensuring the antenna is kept in balance during no-power situations at sea or in transport.

Re-defining maritime broadband
Integrating SAILOR 900 VSAT Ka with the iDirect X7 Satellite Router is the smartest, most cost-effective way to access ground-breaking new High Throughput Satellite (HTS) services on THOR 7. Higher speeds, more reliability and class-leading installation savings, means this combination of state-of-the-art hardware and next generation services offers the ultimate support for business applications, vessel operations and crew welfare.

Streamlining remote access and diagnostics
SAILOR 900 VSAT Ka is incredibly easy to manage, ensuring service providers can offer the best possible support to customers anywhere in the world. Easy remote access and diagnostic features include monthly statistics logging, SNMP and built-in e-mail clients that automatically email historical logging of system performance.

More Information
PRODUCT TYPESATELLITE INTERNET
USE TYPEMARITIME
BRANDCOBHAM
MODELSAILOR 900
PART #407090D-00501
NETWORKVSAT
USAGE AREAREGIONAL - SEE COVERAGE MAP
ANTENNA SIZE103 cm (41 inch)
WEIGHT126,5 kg. / 279 livres
FREQUENCYKa BAND
ACCESSORY TYPEANTENNA
RADOME HEIGHT150.0 cm (58.9 inch)
RADOME DIAMETER130 cm (51.3 inch)
OPERATING TEMPERATURE-25°C to 55°C (-13°F to 131°F)
STORAGE TEMPERATURE-40ºC to 85ºC (-40ºF to 185ºF)

INCLUDED IN SYSTEM
- 407009B-00501 Above Deck Unit (ADU), incl. 103cm reflector, 8W BUC, 2x Multi-Band LNBs, OMT, Diplexer, Mounting Accessories.
- 407016C-00505 Antenna Control Unit (ACU) with AC Power input for 19" rack mounting (1U).
- User & Installation Manual.
- AC Power cord
- NMEA Multi-plug.
- 2x 1m 75 Ohm coax cable TX/RX ACU-VMU.
- Ethernet cable.
