Cobham SAILOR 600 XTR GX-R2 9.0 Watt Marine Satellite Internet System for Inmarsat GX (407560D-00540)

A$84,064.75
BRAND:
COBHAM
MODEL:
SAILOR 600 XTR GX-R2 9,0W
PART #:
407560D-00540
Stock Status:
In stock
AVAILABILITY:
SUBJECT TO AVAILABILITY
Product Code:
Cobham-407560D-00540

Cobham SAILOR 600 XTR GX-R2 9.0 Watt Marine Satellite Internet System for Inmarsat GX (407560D-00540)

Your compact and lightweight future-proof Ka-band system for Inmarsat Global Xpress® – available with either 4.5W or 9W wideband, dual-pol transceiver. Enjoy fast, dependable broadband for operations, business and entertainment with the powerful combination of cutting-edge SAILOR 600 XTR GX-R2 antennas and Inmarsat Fleet Xpress services. Small, superlight and featurepacked, SAILOR 600 XTR GX-R2 delivers the ultimate at-sea connectivity experience for any size of vessels.

Light, Rugged, Future-proof
SAILOR 600 XTR GX-R2 is built to withstand the toughest sea conditions and still deliver high bandwidth connectivity on Inmarsat Fleet Xpress™. It is the fastest tracking antenna available in the 60 cm class and features superior dynamic performance in all axes (roll, pitch and yaw) so vessels more affected by rough seas can now benefit from high service availability regardless of conditions.

Based on the new generation SAILOR XTR technology platform, the SAILOR 600 XTR GX-R2 features an advanced RF package with new Ka-band transceiver (XCVR) and feed horn which supports dual-polarisation and wide-band Ka, making it ready to take advantage of Inmarsat’s future satellite constellations.

Next Generation Feature-set
Because SAILOR 600 XTR GX-R2 leverages the SAILOR XTR platform, it benefits from sophisticated Rapid Deployment Technology, which reduces installation complexity and cost. This unique set of capabilities and features including the XTR™ Installation Wizard and a true oneSAILOR® 600 XTR™ GX-R2 Frequency Flexibility. Platform Scalability. A Heritage of Reliability. Any Orbit. Any Network. Anywhere. Product Sheet cable solution. SAILOR XTR introduces technical features including the new XTR Antenna System Control Module inside the Above Deck Unit (ADU) with a lightning-fast processor as the heart of the new modular star network component topology, with deep self-diagnostics capabilities and extended, highly secure remote access. Additionally, fully integrated IoT protocols enable on-demand antenna health and performance data, and unique ‘in-dome’ Ethernet accommodates simple integration of third-party services such as Wi-Fi or cellular.

SAILOR® XTR™ – One Platform For All Antennas
• Rapid deployment technology with a true one-cable, software-controlled solution.
• Best-in-class RF performance for end-users to get more value from their investment.
• Powerful new controller and motors to improve performance at all levels.
• Built-in flexibility to ensure Inmarsat GX constellations readiness now and in the
future.
• Dual antenna operation for reliable automatic switching between two antennas.
• New secure software platform to protect businesses against any cyber security risks.
• New pedestal simplified design to improve mechanical performance.
• Easy servicing and operation to enable higher QoS and business continuity

More Information
PRODUCT TYPESATELLITE INTERNET
USE TYPEMARITIME
BRANDCOBHAM
MODELSAILOR 600 XTR GX-R2 9,0W
PART #407560D-00540
NETWORKINMARSAT
SERVICEINMARSAT GX
FREQUENCYKa BAND

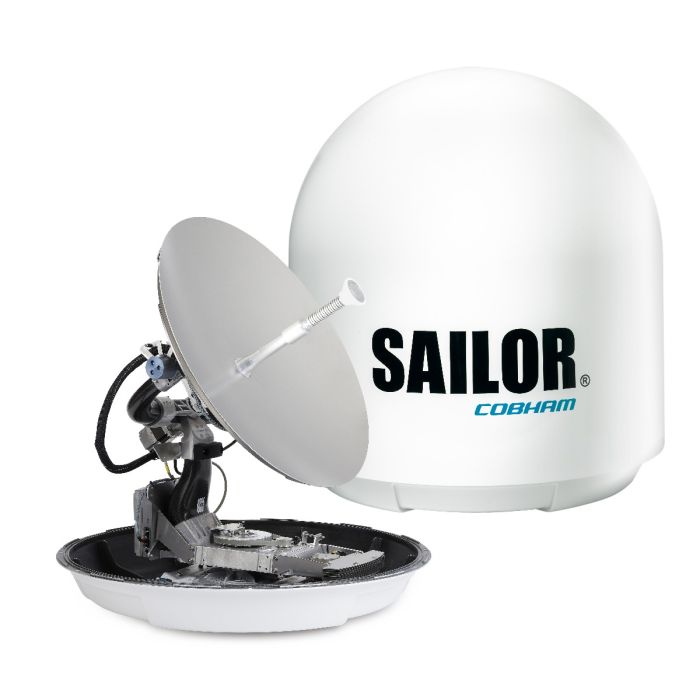

Cobham SAILOR 600 XTR GX-R2 (407560D-00540) 407506D Above Deck Unit (ADU), incl. 65cm reflector, 9.0W XCVR and Mounting Accessories.407516A Antenna Control Unit (ACU) for 19 rack mounting (1U).- AC Power cord.- 2x 1m 75 Ohm coax cable TX/RX ACU-VMU.- 407023A GX Modem Unit (GMU) for 19 rack mounting (1U).- 2x RS-232/RS-422 serial cable.- 1x 115/230VAC Power cord.
