Cobham Explorer 323 (403723A-00500)

A$6,938.83
Overview

The Cobham EXPLORER 323 is an ultra compact BGAN terminal for voice and data communication on-the-move, a perfect match for PRISM PTT+ .

BRAND:
COBHAM
MODEL:
EXPLORER 323
PART #:
403723A-00500
WARRANTY:
12 MONTHS
Stock Status:
In stock
AVAILABILITY:
USUALLY SHIPS IN 2-3 BUSINESS DAYS
Product Code:
Thrane-BGAN-Explorer-323

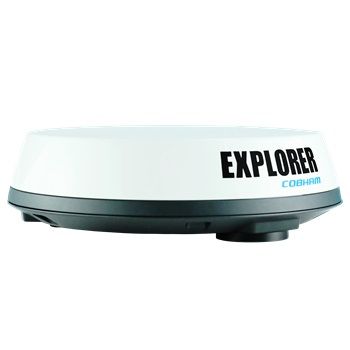

Cobham BGAN Explorer 323
Compact voice and broadband solution EXPLORER 323 is an ultra compact BGAN terminal for voice and data communication on-the-move, a perfect match for PRISM PTT+.

The one-piece system consists of a combined tranceiver and switched beam antenna with integrated wifi.

Whether you’re engaged in humanitarian operations, cargo or rail transportation, telemedicine or emergency services, you need easy deployable communication equipment you can always rely on. Regardless of time or place.

Instant communication
Simply place the terminal on the roof - it is easily mounted with optional magnetic mounts - and connect your phone to the EXPLORER app or log onto the wireless network with your PC to turn the vehicle into a mobile communication hub.

No moving parts
The beam switching antenna is ultra compact and lightweight (just 3.6 kg / 7.9 lbs), ideal for vehicles or trains on-the-move. It is designed for robust and durable use with no moving parts.

No roaming
BGAN offers mobile broadband connectivity wherever you go at fixed pricing with no roaming fees. With the EXPLORER 323 you know your cost of communication regardless of the number of borders you cross.

First of its kind
As an ultra-portable vehicular terminal, EXPLORER 323 is the first terminal with an Inmarsat Class 12 type approval, enabling it to be used for both M2M and traditional BGAN.

More Information
PRODUCT TYPESATELLITE INTERNET
USE TYPEVEHICULAR
BRANDCOBHAM
MODELEXPLORER 323
PART #403723A-00500
NETWORKINMARSAT
CONSTELLATION3 SATELLITES
USAGE AREAGLOBAL (EXCEPT POLAR REGIONS)
SERVICEINMARSAT BGAN
FEATURESPHONE, TEXT MESSAGING, INTERNET, EMAIL, FTP, VIDEO STREAMING, FoIP (FAX)
DATA SPEEDUP TO 448 / 464 kbps (SEND / RECEIVE)
STREAMING IP32 kbps, 64 kbps
HEIGHT97 mm (3,82 pouces)
DIAMETER321 mm (12,7 mm)
WEIGHT3,6 kg (7,9 livres)
FREQUENCYL BAND (1-2 GHz)
INGRESS PROTECTIONIP 66
ACCESSORY TYPETERMINAL
OTHER DATA INTERFACES2X ETHERNET
OPERATING TEMPERATURE-25°C to 55°C (-13°F to 131°F)
STORAGE TEMPERATURE-40ºC to 85ºC (-40ºF to 185ºF)
CERTIFICATIONSCE COMPLIANCE, FCC, GMPCS
SUPPORTED LANGUAGESENGLISH, CHINESE, FRENCH, GERMAN, PORTUGUESE, RUSSIAN, SPANISH

Included in system

- Fully integrated Antenna and Terminal
- Color: White
- Hybrid cable for 12/24V DC power and Ethernet (6m / 19.7ft)
- Quick Start Guide
- Drilling template for mounting

Inmarsat BGAN Coverage Map


Inmarsat BGAN Coverage Map

This map depicts Inmarsat's expectations of coverage following the commercial introduction of Inmarsat's fourth L-Band region. It does not represent a guarantee of service. The availability of service at the edge of coverage areas fluctuates depending on various conditions.

BROCHURES
pdf
 (Size: 696.1 KB)
pdf
 (Size: 1000.6 KB)
