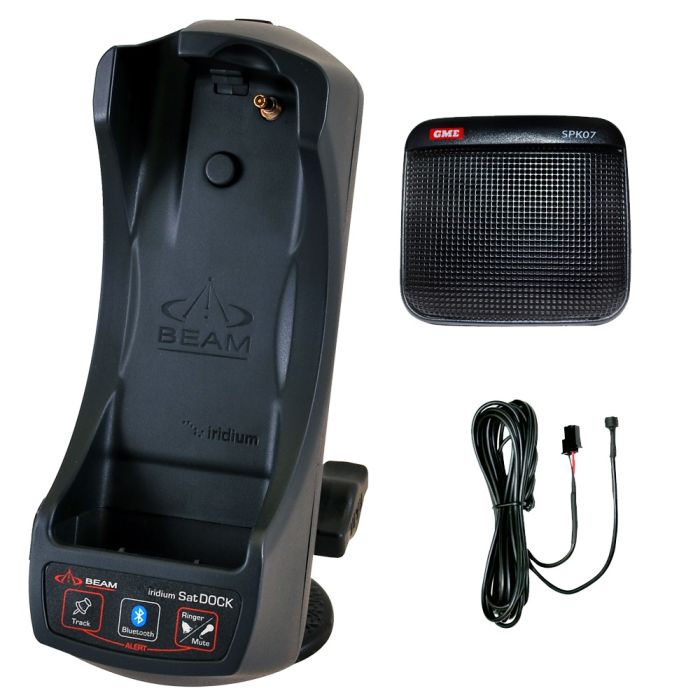

Beam SatDOCK-G 9555 Hands-free Vehicle Docking Station (9555SDG)

A$1,611.23
Overview

Beam SatDOCK In-vehicle hands-free docking station provides a high quality semi-permanent installation for the Iridium 9555 handset. The docking station has inbuilt echo cancelling and full duplex technologies to provide superior voice quality and professional handsfree or privacy calls for various transport application.

BRAND:
BEAM
PART #:
9555SDG
WARRANTY:
24 MONTHS
Stock Status:
In stock
AVAILABILITY:
USUALLY SHIPS IN 3-5 BUSINESS DAYS
Product Code:
Beam-SatDock-9555SD-G-Iridium
Beam SatDOCK-G 9555 Hands-free Vehicle Docking Station (9555SDG)
The SatDOCK supports Tracking & Alert functionality via the dedicated in built GPS engine. Tracking messages can be pre configured to support periodic reporting, manual position report update via button press, remote polling or the sending of an emergency alert messages all via SMS / SMS to email or SBD ( Short Burst Data )

The Iridium 9555 satellite handset, fits securely in the Dock which is compact in design, unlike other traditional docking kits that require another external box for installation, the Beam SatDOCK is all contained within the one single compact Dock. Other features include phone charging, in-built Bluetooth, USB data, inbuilt ringer and allows antenna and power to be permanently connected to the Dock ready for use. The Iridium 9555 handset is easily inserted and removed by the press of a button on the top of the dock making it very easy to use away from the Dock when required.

SatDOCK also supports the use of an optional active privacy handset or the fully featured intelligent handset, RST970 these simply and easily added to the SatDOCK.

SatDOCK provides the flexibility of using your handheld satellite telephone to support the use of equipment for a wide variety of applications. It has an in-built Bluetooth module for voice connectivity along with an intelligent tracking and alert reporting system utilizing the in-built GPS engine of the SatDOCK. The alert & tracking module can be configured to support periodic polling or emergency alert reporting.

SatDOCK Cradle
. Securely holds 9555 handset
. Robust design and construction
. Charges 9555 handset ready for use
. Integrated power & antenna connection
. Integrated USB connectivity

Handsfree Mode
. In-built echo cancelling
. Full duplex technology
. Superior voice quality

Tracking / GPS
. Tracking & alert monitoring capable
. Periodic position reports or remotely polled
. In-built GPS engine
. Interfaces to Beam?s LeoTRAK-Online
. Compatible with other tracking applications

Panic / Alerts
. Panic alert button in-built to cradle
. Option of additional wired alert buttons

Integrated Bluetooth
. Bluetooth Voice Connectivity

In-Built Ringer
. In-built ringer for enhanced ring indication

Voice, Data, SMS, SBD
. Supports all Iridium voice, data, SMS & SBD services

Privacy & Intelligent Handset
. Supports optional Beam privacy handset and Intelligent Handset ( RST970)
. Auto sensing answer/hang-up intelligence
. Switches between handset and hands-free modes

Installation
. Supports 9 - 32V DC power input
. Flexible installation via universal mount, also suitable for wall mounting
. Antenna, microphone and speaker installed in a convenient location
. Allows semi-permanent installation

Quality
. 2 year peace of mind replacement guarantee
. 100% factory tested
. Compliance: Iridium, RoHS, CE, IEC60945
More Information
PRODUCT TYPESATELLITE PHONE
USE TYPEAVIATION, MARITIME, VEHICULAR
BRANDBEAM
PART #9555SDG
NETWORKIRIDIUM
CONSTELLATION66 SATELLITES
USAGE AREA100% GLOBAL
SERVICEIRIDIUM VOICE
FEATURESPHONE, GPS, SOS, BLUETOOTH
LENGTH200 mm (7.9")
WIDTH75 mm (3.0 inch)
DEPTH65 mm (2.7")
WEIGHT0.37 kg (0.7 lb)
FREQUENCYL BAND (1-2 GHz)
COMPATIBLE WITHIRIDIUM 9555
ACCESSORY TYPEDOCKING STATION
OPERATING TEMPERATURE-20°C to 70°C (-4°F to 158°F)
STORAGE TEMPERATURE-30°C ~ 70°C (-22°F ~ 158°F )
CERTIFICATIONSIRIDIUM CERTIFIED, CE COMPLIANCE, FCC, INDUSTRY CANADA, RoHS

Beam SatDOCK-G 9555 Features:
• Slim line compact installation
• Integrated Bluetooth connectivity
• Hands-free insatllation
• Privacy Handset options
• Voice, SMS, SBD and Circuit Switched Data capable
• Tracking and SOS
• USB data interface
• RS232 D9 Serial Interface
• Accessory / Ignition sense
• Full certified, Iridium, RoHS, CE, IEC60945
• 2 year repair or replacement warranty
