Beam IsatDock Marine for Inmarsat IsatPhone Pro

Beam IsatDock Marine for Inmarsat IsatPhone Pro - Limited Availability

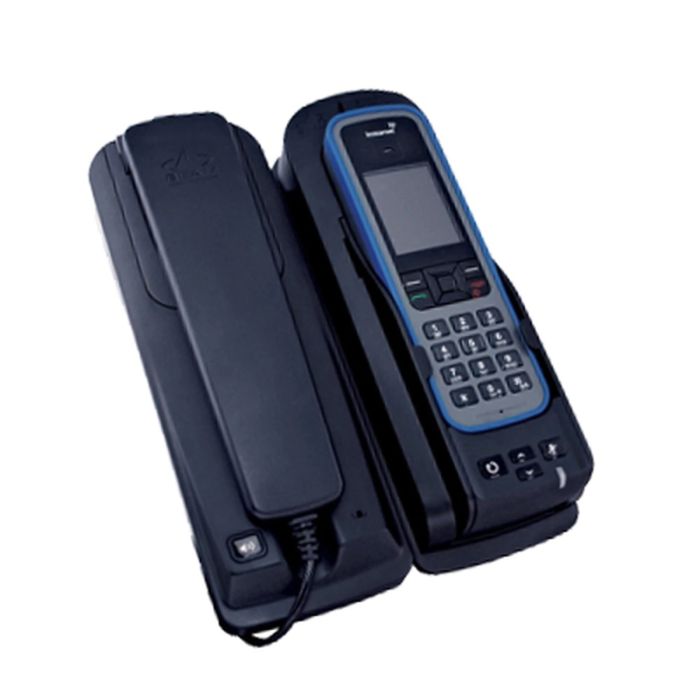

Beam IsatDock MARINE is an IP54 rated intelligent docking station for the IsatPhone Pro specifically designed for maritime application. The MARINE Dock supports voice services via Bluetooth, RJ11/POTS, handsfree speakerphone or the active privacy handset. The handset is completely enclosed in the docking unit whilst still giving full access and functionality to the user.

The IsatDock MARINE supports Tracking & Alert functionality via the dedicated in-built GPS engine. Tracking messages can be pre-configured to support periodic reporting, manual position report update via button press, remote polling or the sending of an emergency alert messages all via SMS or SMS to email. The MARINE Dock also supports the installation of an external alert button that can be installed in a convenient location.

IsatDock MARINE allows the IsatPhone Pro handset to be used in a wide variety of maritime applications, the intelligent RJ11/ POTS interface enables cable runs of up to 600m to connect standard corded, cordless or DECT handsets to be used or alternatively interfaced with a PBX system presenting standard ring, busy and dial tones like a standard phone network.

The IsatPhone Pro handset, fits securely in the dock which is also key lockable, other features include phone charging, USB data port, in-built ringer and allows antenna and power to be permanently connected to the Dock ready for use.

TRACKING / ALERT MONITORING
IsatDock MARINE has an in-built GPS module that can provide simple tracking, monitoring and alert management in various applications within various types of vehicles, vessels or fixed site locations.

The GPS provides pinpoint accuracy and enables tracking worldwide. Tracking and alert messages can be sent via SMS or SMS to email.

IsatDock MARINE tracking and alert messages can be
simply sent to any tracking application.

Tracking messages can be sent from the IsatDock MARINE via the following means;

1. Periodic position reporting, preset during configuration of the terminal
2. Upon an alert being activated via the Alert button on the cradle or connected alert button
3. A current location position can be sent at any time by pressing the Track button on the front of the IsatDock MARINE

Alert/Alarm messages can be activated on the IsatDock MARINE using the two button press on the front of the cradle or alternatively an additional alert button or other trigger can be connected to the unit.

Once configured the alert system is always on and will generate an alert message to the preset destination once triggered. Alerts can be triggered to continually send until the alert is cleared either remotely or locally on the IsatDock MARINE unit.

TECHNICAL SPECIFICATIONS
AVERAGE POWER CONSUMPTION CURRENT @ 12V
AVERAGE WATTS
Power w/o IsatPhone Pro 130mA 1.6W
Standby + Charging 360mA 4.3W
Transmit + Charging 875mA 10.5W
Sleep Mode 5mA 60mW
Peak Current 3.5A 42W

PHYSICAL SPECIFICATIONS
Dimensions 270 x 189 x 101(mm)
10.6 x 7.4 x 4 (inches)
Weight - Dock 1.66kg 3.67lbs
Total Kit Weight 2.72kg 5.99lbs

ENVIRONMENT SPECIFICATIONS
Operating Range -30°C to +70°C -22°F to +158°F
Storage -35°C to +85°C -31°F to +185°F
Battery Charging Temp# 0°C to +45°C 32°F to +113°F
Humidity <= 75% RH
GPS Module (internal)
Channels 14 tracking, 51 Channel Acquiring
Update Rate 1Hz
Accuracy Position 2.5mCEP, Velocity 0.1m/s, Timing 300ns
Acquisition TTFF Cold 29sec, Hot 1sec
Sensitivity --161 dBm
Operational Limits Altitude 18000m , Velocity 515m/s
Dynamics 4G

CONNECTORS / INTERFACES
POTS/RJ11 RJ11/2-wire, 5REN @ 600m, Adjustable dial, ring, busy tone configured frequency and adaptive impedance.
Inmarsat Antenna TNC-Female
GPS Antenna SMA-Female
10-32 V DC 4-way microFit (AC/DC adator, or DC lead)
Privacy Handset Port RJ9 connector
Configuration/Data* USB Micro
Speakerphone In-built speaker and microphone
I/O Alarm/Alert
Alert button in-built Two button press
1x alarm loop Bare wire - ‘‘Normally Closed’’ loop IN to OUT
Track In-built single key press

CERTIFICATIONS
Inmarsat
FCC
CE Compliance
Electrical Safety
RoHS
IP55 Rating
Industry Canada
C-Tick
EMC compliance

ACCESSORIES
LTO LeoTRAK-Online
ISD710 IsatDock Maritme Active Antenna
ISD932 IsatDock 6m SMA/TNC Active cable kit
ISD933 IsatDock 13m SMA/TNC Active cable kit
ISD934 IsatDock 18m SMA/TNC Active cable kit
ISD935 IsatDock 31m SMA/TNC Active cable kit
RST055 Beam UPS Battery Pack
RST410 Alert Pendant kit
